SKE – MR2LS-31J
COILS – CIRCUMFERENTIAL – TRANSVERSAL AXIS

DATA SHEET

Technical details of SKE/MR2LS-31J

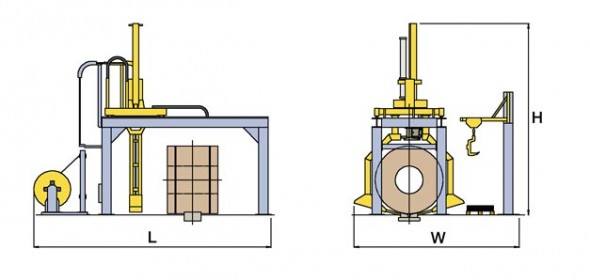

Approximative dimensions Like indicate on drawing
Approx. Weight 6500 kg
Power supply 400 Volt – 50 Hertz (other on request)
Installed power 15 kW
External diameter of coil Min 900 mm Max 2200 mm
Package width Min 608 mm Max 760 mm
Package height Min 550 mm Max 1650 mm
Working pressure 0,6 M Pa
Air consumption 500 Nl/cycle
Time for one strapping About 20 s/cycle

SKEMR2LS-31J-3

Technical details VS 31
Functioning Electropneumatic
Strap to be used Standard; Megaflex; Megaband
Strap width 19; 25; 32 mm
Strap thickness From 0,63 to 1 mm (for Megaband max. 0,8 mm)
Power supply 24 VAC / VDC – 220 VAC – 50 / 60 Hz
Electrical consumption 1 kW
Strap tensioning Adjustable from 5.000 to 17.000 N
Strap feed speed 1,7 m/s
Sealing method 3 + 3 notches system
Joint efficiency 75 – 85% of the strap breaking strenght

APPLICATION

Circumferential strapping machine with bridge crane for coils, provided with jumbo dispenser and movable track.
